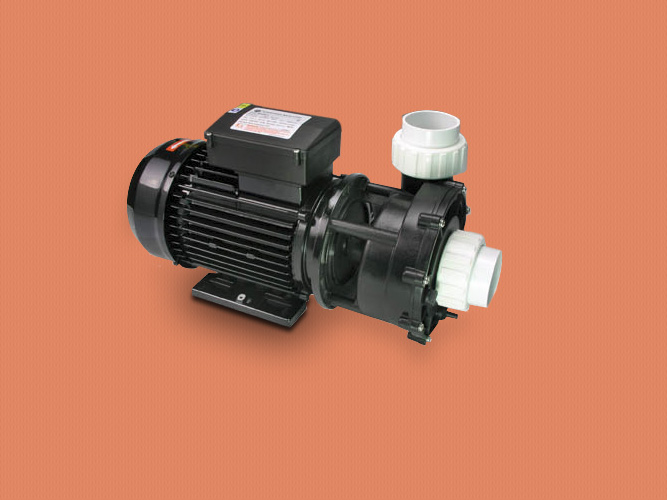

PL W300 Jacuzzi Pump
Power rate : 2,2 Kw / 3 HP
features:
- Large flow volute design with 2" inlet & outlet
- Single phase motor installation TI thermal protector
- Motor adopts high temperature resistant bearing that be long life, reliable and durable
- Liquid absolutely separate with shaft to keep more safe and reliable
- Insulation class F
- IPX5 standard
- CD, TUV, SAA Certificate
- 220 Volt/50Hz
- Max Head : 18 m
- Max Flow Rate : 730 l/min
- Power : 2,2 kW
- Current Ampere : 10A
- 2" pipe size
- Medium temperature 5-50°C
- Environmental temp < 40°C
- Max. pressure 0,3 mPa
specification:
